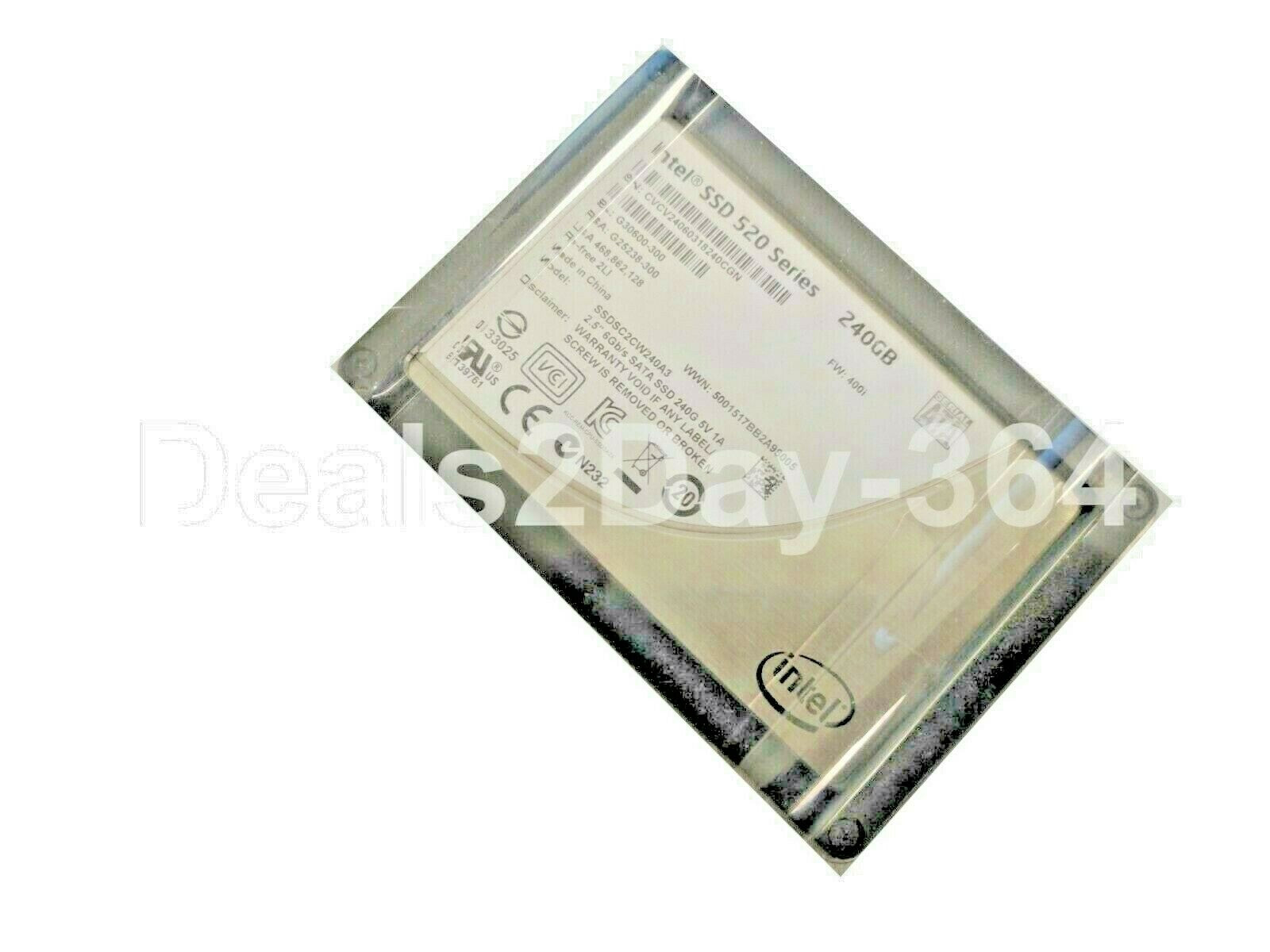

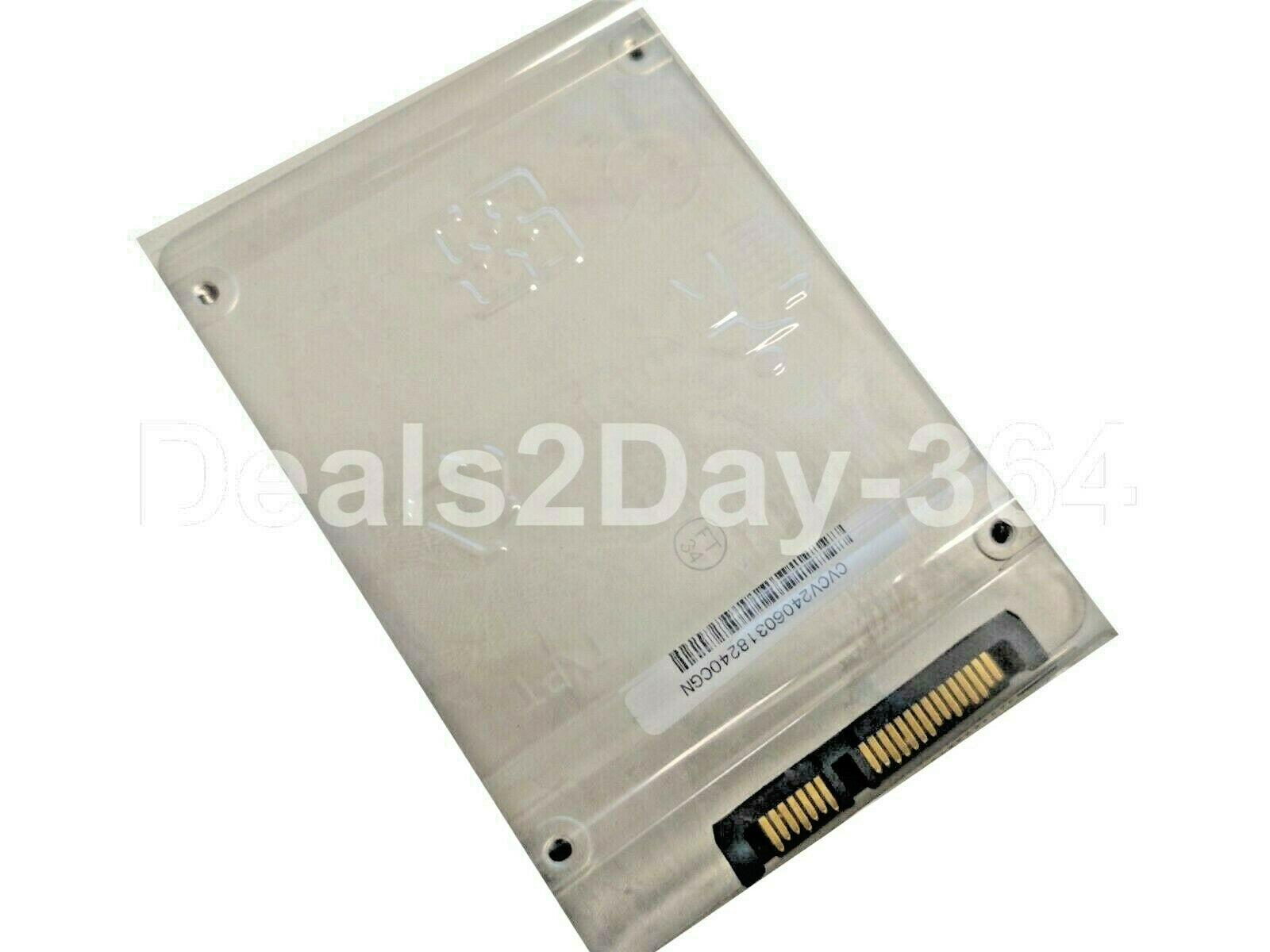

- Intel SSD 520 Series SSDSC2CW240A3 240GB1 Year Warranty
- Product CollectionIntel SSD 520 Series
- Code NameProducts formerly Cherryville
- Capacity240 GB
- StatusDiscontinued
- Launch DateQ1'12
- Lithography Type25 nm
- Off RoadmapNo
Performance- Sequential Read (up to)550 MB/s
- Sequential Write (up to)520 MB/s
- Random Read (8GB Span) (up to)50000 IOPS
- Random Write (8GB Span) (up to)60000 IOPS
- Latency - Read80 s
- Latency - Write85 s
- Power - Active850 mW (MobileMark 2007 Workload)
- Power - Idle600 mW (DIPM)
Reliability- Vibration - Operating2.17 GRMS (5-700 Hz)
- Vibration - Non-Operating3.13 GRMS (5-800 Hz)
- Shock (Operating and Non-Operating)1,500 G/.5 msec
- Operating Temperature Range0C to 70C
- Operating Temperature (Maximum)70 C
- Operating Temperature (Minimum)0 C
- Mean Time Between Failures (MTBF)1,200,000 Hours
- Uncorrectable Bit Error Rate (UBER)1 sector per 1016
- Warranty Period5 yrs
Package Specifications- ComponentsIntel NAND Flash Memory Multi-Level Cell (MLC) Technology
- WeightUp to 78 grams
- Form Factor2.5" 7mm
- InterfaceSATA 3.0 6Gb/S
Advanced Technologies- Enhanced Power Loss Data ProtectionNo
- Hardware EncryptionAES 128 bit
- Product CollectionIntel SSD 520 Series
-
